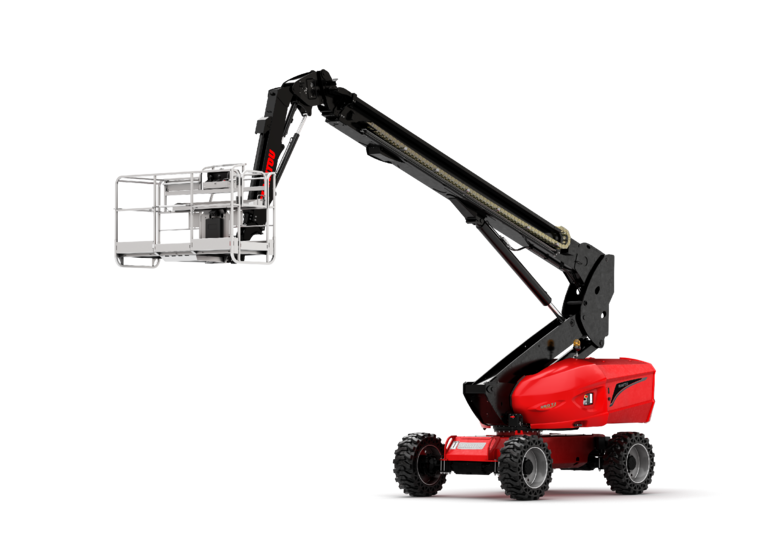

28m Articulated Boom Lift
Manufacturer: Manitou
Code: ZNY064
Model: 280TJ
Specifications
This lightweight and compact 28m working height diesel stick boom allows for a maximum outreach of 21.45m, maximum basket capacity of 350kg. All our 280TJ models come with the following as standard: Continuous rotation, 4x4x4 crab steer, secondary guarding and an on-board generator.
Specification
- Working height - 27.75m
- Maximum outreach - 21.45m
- Platform dimensions - 2.30m x 0.90m
- Machine width - 2.43m
- Lift capacity - 350kg (3 persons) / 240kg (2 persons)
- Drive - 4x4x4
- Weight - 16650kg
- Gradeability - 40%
- Power source - diesel
- Tyres - Foam filled or solid
